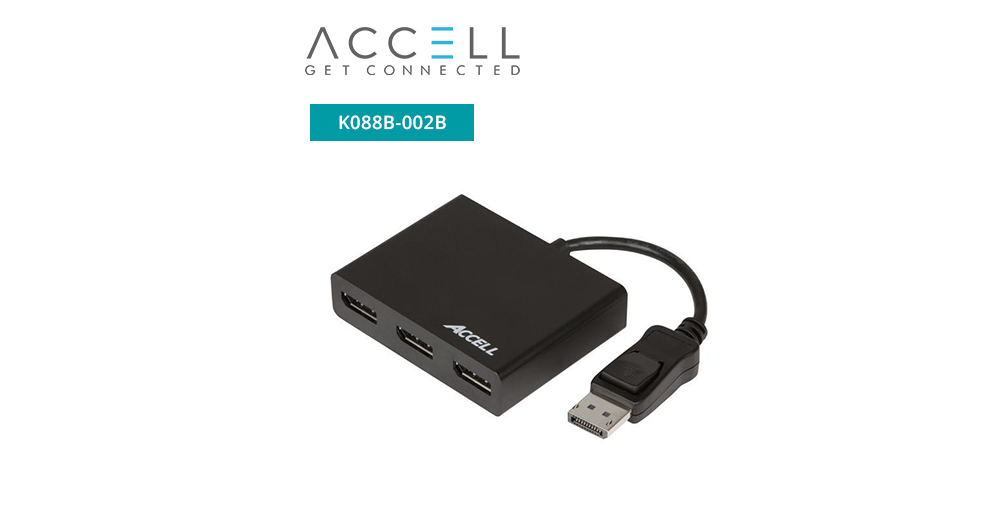

Main features of the UltraAV® DisplayPort 1.2 to 3 DisplayPort Multi-Display MST Hub:
Works on DisplayPort (or Mini DisplayPort) enabled Windows
Utilises new Multi-Stream Transport (MST) protocols
Supports up to 3 displays independently at 2048x1536 @ 60Hz each with DP 1.2
Connect 2 Multi-Display Hubs for 6 Displays
Supports per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Supports resolutions up to 2048X1536 @ 60Hz each monitor in DP1.2 MST mode
Supports resolutions up to 2560x1600 @ 60Hz (mirror mode) in DP1.1 (or 1.2) in SST mode.
Standards compliance: DisplayPort v1.2/1.1a,VESA DDM ,HDCP V2.0 and EDID V1.4
Features 3 DP++ output ports, adapt to any combination of 3 ports or 2 dual-link DVI ports
Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
​
The maximum number of displays that can be enabled at the same time is limited by the number of display pipes.
